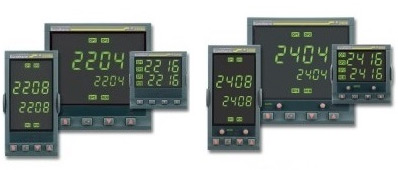

2000, 3000 & Piccolos Series - Ideally suited for single variable thermal or process control loop.These instruments provide precise temperature and process control with a host of advanced features Like heater failure detection, custom text messaging, current monitoring, timer, remote set point facility, Basic set point programmer, communication option and recipe.
| FEATURES | 2000 Series | 3000 Series | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single Loop | 2100 Series | 2200 Series | 2400 Series | 3200 Series | 3500 Series | ||||||||
| Features | 2132 | 2216e | 2208e | 2204e | 2416 | 2408 | 2404 | 3216 | 3208 | 32H8 | 3204 | 3508 | 3504 |
| Panel size (DIN) | 1/32 | 1/16 Din Rail | 1/8 | 1/4 | 1/16 | 1/8 | 1/4 | 1/16 | 1/8 | 1/8 | 1/4 | 1/8 | 1/4 |
| IP Rating | IP65 | IP65 | IP65 | IP65, NEMA12 | IP65, NEMA12 | ||||||||
| Display Type | 1 x 4 dig LED |
2 x 4 dig LED | 2 x 4 dig LED | Main: 4 digits Lower: 5 character starburst (3216/08/04) 9 character starburst (32h8) |
Main PV: 5 digit plus 4 line alphanumeric | ||||||||
| Supply Voltage | 24V dc/ac, 85-264V ac |
85-264V ac | 24V dc/ac, 85-264V ac |
24V dc/ac, 85-264V ac |
24V dc/ac, 85-264V ac |
||||||||
| Safety Approvals | x | x | x | EN14597 TR | x | ||||||||
| Input Type | TC, RTD, mV, mA, V |
TC, RTD, mV, mA, Volts |
TC, RTD, mV, mA, Volts |
TC, RTD,mV, mA, CT |
TC, RTD, mV, mA, Volts |
||||||||
| PV Accuracy | <0.25% | <0.25% | <0.2% | <0.25% | <0.1% | ||||||||
| Control Types | On/Off. PID | On/Off. PID, VP | On/Off. PID, VP | On/Off. PID, VP | On/Off. PID, VP | ||||||||
| Special Features | x | x | Dual input control | Recipes, Text messaging | User wiring, Master comms | ||||||||
| SP Programmer | x | x | 20 x 16 Segments | 4 Ramp + 4 Dwell | 50 Programmes, 500 Segments max |
||||||||
| Analogue IP/OP | In: 1 Out: 0 | In: 1 Out: 1 | In: 2 Out: 3 | In: 2 Out: 3 | In: 5 Out: 6 | ||||||||
| Digital IP/OP | In: 1 Out: 2 | In: 3 Out: 4 | In: 11 Out: 11 | In: 3 Out: 4 | In: 40 Out: 41 | ||||||||
| Digital Comms | x | Modbus, DeviceNet | Modbus, DeviceNet, Profibus |
Modbus | Modbus, DeviceNet, Profibus, Ethernet |
||||||||
| Maths Equation | x | x | x | x | 24 Calculations | ||||||||
| Combinational Logic | x | x | x | x | 24 Operations | ||||||||
| Timers/ Counters/ Totals |
x | x | x | x | 4/2/2 | ||||||||
| Real Time Clock | x | x | x | x | Day and Time | ||||||||
| Alarm Types | Hi, Lo, Dev, Sensor break |
Hi, Lo, Dev, Heater fail Sensor break, Event |
Hi, Lo, Dev, Heater fail Sensor break, Event |
Hi, Lo, Dev, Heater fail Sensor break, Event |
Hi, Lo, Dev, Heater fail Sensor break, Event |
||||||||
| PC Configuration | List based | List based | List based | Wizard | Graphical Wiring | ||||||||
